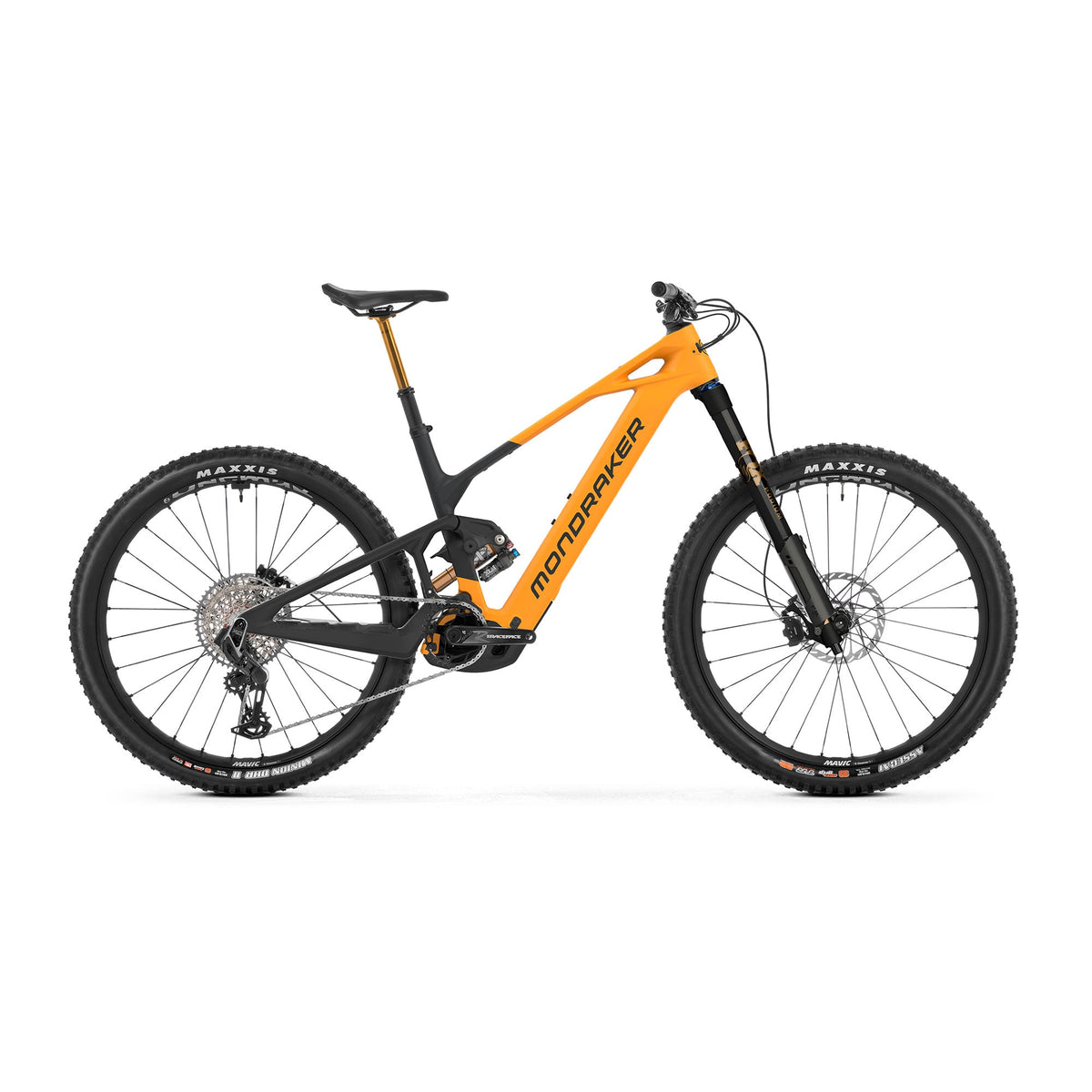

Mondraker Crafty Carbon RR S Bike
Sale price
$10,999.00
Regular price
$10,999.00
Prices subject to change. How pricing works →
-
- RA price match promise
-
Pay later with
In Stock Ships Immediately
In Stock Ships in 1-2 weeks based on its location
Permanently Sold Out — Chat with us about updated options!
SKU: 010.26US314 Option: Dense Yellow / S
Pickup available at RA Cycles Brooklyn
Pickup available at RA Cycles Walnut Creek
Qualifying customers may be able to pay with their HSA or FSA through Flex. Flex disclosures (opens in a new tab)
Stock Availability by Location
RA Cycles Brooklyn In stockLow stock (1 left)Low stock (2 left)— Out of stock— Not immediately available
105 5th Ave, Brooklyn, NY 11217718-636-5242
* Available for in-store pickup in 2-4 hours
* Available for in-store pickup in 2-4 hours
* Available for in-store pickup in 2-4 hours
RA Cycles Walnut Creek In stockLow stock (1 left)Low stock (2 left)— Out of stock— Not immediately available
2099 Mt Diablo Blvd, Walnut Creek, CA 94596925-433-7099
* Available for in-store pickup in 2-4 hours
* Available for in-store pickup in 2-4 hours
* Available for in-store pickup in 2-4 hours
Distribution Center - East In stockLow stock (1 left)Low stock (2 left)— Out of stock— Not immediately available
Distribution Center - Central In stockLow stock (1 left)Low stock (2 left)— Out of stock— Not immediately available
Questions about this product?
What size do I need?
Schedule a Bike Fit in Walnut Creek, CA.
Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242

Mondraker Crafty Carbon RR S Bike
$10,999.00
Mondraker Crafty Carbon RR S Bike Info
The Mondraker Crafty Carbon RR S Bike sits near the top of Mondraker’s electric mountain bike lineup, delivering a refined combination of power, precision suspension, and progressive trail geometry. Built for riders who want elite-level trail capability with the added advantage of full-power electric assistance, the Crafty Carbon RR S blends Mondraker’s advanced carbon engineering with premium components designed to thrive on demanding mountain terrain.
The bike is built around Mondraker’s Crafty Stealth Air full carbon frame, a platform developed to provide exceptional stiffness, strength, and precise ride characteristics while maintaining the responsiveness expected from a high-end trail machine. Carbon construction helps keep the chassis efficient and balanced, while the integrated design cleanly houses the motor and battery system for improved weight distribution and a streamlined appearance.
Central to the Crafty Carbon RR S’s handling is Mondraker’s renowned Forward Geometry. By extending the bike’s front center and pairing it with a shorter stem, this geometry enhances stability at speed and improves rider confidence on steep or technical trails. The longer reach allows riders to remain centered on the bike, improving control during aggressive descending while still maintaining responsive steering on tight singletrack.
The suspension system is built around Mondraker’s Zero Suspension System, which isolates pedaling and braking forces from suspension movement. This allows the suspension to remain fully active while climbing or descending, maximizing traction and control across varied trail conditions. With generous suspension travel designed for aggressive trail riding, the Crafty Carbon RR S absorbs rough terrain with ease while maintaining efficiency when pedaling uphill.
Powering the bike is the Bosch Performance Line CX Smart System, one of the most trusted and capable e-MTB drive units available. Known for its smooth power delivery and impressive torque, the motor helps riders conquer steep climbs and maintain speed on long trail rides. The integrated battery system provides strong range for extended adventures while keeping the frame’s design clean and balanced.
The Crafty Carbon RR S is equipped with a SRAM electronic mountain drivetrain, delivering fast, precise shifting with minimal effort. Electronic drivetrain systems are especially beneficial on e-MTB platforms, where reliable gear changes under high load are essential for maintaining momentum on steep climbs and technical terrain.
High-performance hydraulic disc brakes provide the stopping power required for aggressive trail riding. Powerful braking performance ensures riders can confidently manage speed when descending technical trails, navigating tight switchbacks, or approaching steep features.
Mondraker also pays close attention to frame integration and durability. Internal cable routing keeps the cockpit clean while protecting components from dirt and trail debris. The integrated battery and motor system are seamlessly incorporated into the frame to maintain structural integrity and improve the bike’s overall balance on the trail.
With its combination of electric assistance, premium suspension design, and Mondraker’s progressive geometry, the Crafty Carbon RR S is built for riders who want to explore deeper into mountain terrain without sacrificing downhill performance. Riders can climb faster and farther while still enjoying the aggressive descending capabilities expected from a modern trail bike.
The Mondraker Crafty Carbon RR S Bike ultimately delivers a powerful, high-performance electric mountain bike designed for riders who demand the best in trail capability and advanced engineering. With its carbon frame, Bosch Smart System motor, and premium component package, it stands ready for serious mountain riding.
Design Benefits
- Advanced Carbon Frame: Lightweight yet durable construction improves ride quality and trail responsiveness.
- Forward Geometry Stability: Progressive geometry enhances control and rider confidence on steep descents.
- Zero Suspension Performance: Independent suspension action improves traction and efficiency across varied terrain.
- Powerful Bosch Motor System: Strong electric assistance helps riders tackle longer climbs and more demanding routes.
- Premium Component Package: High-end drivetrain and braking systems deliver reliable performance in aggressive trail conditions.
Final Take
The Mondraker Crafty Carbon RR S Bike is a high-performance electric mountain bike built for riders who want extended range, advanced suspension performance, and aggressive trail capability. With its carbon frame, Bosch motor system, and progressive Mondraker geometry, it offers the power, control, and confidence needed to push deeper into challenging terrain.
Mondraker Crafty Carbon RR S Bike - Specifications
- Frame Material:
- Carbon / 150mm Travel / UDH / 12x148mm
- Fork:
- Fox Podium 29 Float GRIPX2 Factory Kashima / 160mm Travel / Settings: high and low-speed compression, high and low-speed rebound, air preload / 44mm Offset / 20x110mm Kabolt axle
- Rear Suspension:
- Fox Float Factory Kashima EVOL LV 185x55mm / Settings: 2 positions lever, low-speed compression, low-speed rebound, air preload / Trunnion top mount / 30x8mm bottom bushings
- Headset:
- Acros custom ZS56/ZS56, 1-1/8" / 1.5" head tube / Internal cable routing / Sealing plugs with blocklock
- Seatpost:
- Fox Transfer Factory Kashima / Internal / Adjustable travel / 31.6mm / S: 95mm -120mm, M: 125mm -150mm, ML: 155mm -180mm, L: 185mm -210mm, XL: 185mm -210mm
- Rear Derailleur:
- SRAM X0 Eagle AXS T-Type
- Crankset:
- Race Face Aeffect-R ebike
- Chainrings:
- SRAM XX Eagle 34T T-Type / Direct mount / Steel / CL55
- Brake Calipers:
- SRAM Maven Silver 4-piston Hydraulic Disc
- Brake Levers:
- SRAM Maven Silver
- Rotors:
- SRAM HS2 6-Bolt 200mm
- Shifters:
- SRAM Eagle AXS Pod MMX
- Cassette:
- SRAM XS-1275 12-speed 10-52
- Chain:
- SRAM GX Eagle T-Type 12-speed
- Battery:
- Bosch Powertube 800Wh
- Motor:
- Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
- Display:
- Kiox 400C / Bosch Mini Remote
- Wheel - Front:
- Mavic E-Deemax S / 30mm Internal Width / Tubeless ready
- Wheel - Rear:
- Mavic E-Deemax S / 30mm Internal Width / Tubeless ready
- Stem:
- Onoff S9 30mm 0-degree / Full CNC / 31.8mm
- Handlebar:
- Onoff S9 1.0 Carbon / S, M, ML: 25mm rise, L, XL size: 38mm rise / Width: 800mm / 8-degree backsweep / 5-degree upsweep / 31.8mm
- Saddle:
- Ergon SM-10
- Tires:
- Front: Maxxis Minion Assegai 29x2.5 WT / Tubeless ready / 3C Maxx Grip / EXO+ Protection Rear: Maxxis Minion DHR II 29x2.5 WT / Tubeless ready / 3C Maxx / DD Protection
- Grips:
- Onoff Desert Pro / CNC lock-on / 135mm / L and XL: Thicker size
- Pedals:
- Not Included
- Travel:
- 160mm/150mm
*Specifications are subject to change.
Mondraker Crafty Carbon RR S Bike Geometry
| Size: | S | M | ML | L | XL |
|---|---|---|---|---|---|
| B. Seat Tube (c-t) | 380 | 410 | 435 | 460 | 490 |
| C. Top Tube Length | 581/582 | 596/597 | 618/619 | 640/641 | 662/663 |
| D. Head Tube Length | 120 | 120 | 130 | 140 | 150 |
| E. Chain Stay Length | 455/456 | 455/456 | 455/456 | 465/466 | 465/466 |
| F. BB Drop | 25/30 | 25/30 | 25/30 | 25/30 | 25/30 |
| G. Seat Tube Angle | 73/72.65 | 73/72.65 | 73/72.65 | 73/72.65 | 73/72.65 |
| H. Head Tube Angle | 64.5/64.15 | 64.5/64.15 | 64.5/64.15 | 64.5/64.15 | 64.5/64.15 |
| J. Wheel Size | 29" | 29" | 29" | 29" | 29" |
| K. Stack | 638/641 | 638/641 | 647/650 | 656/659 | 665/668 |
| L. Reach | 445/441 | 460/456 | 480/476 | 500/496 | 520/516 |
| Stem Length | 30mm | 30mm | 30mm | 30mm | 30mm |
| Bar Width | 800mm | 800mm | 800mm | 800mm | 800mm |
| M. Crank Length | 160mm | 160mm | 160mm | 160mm | 160mm |
