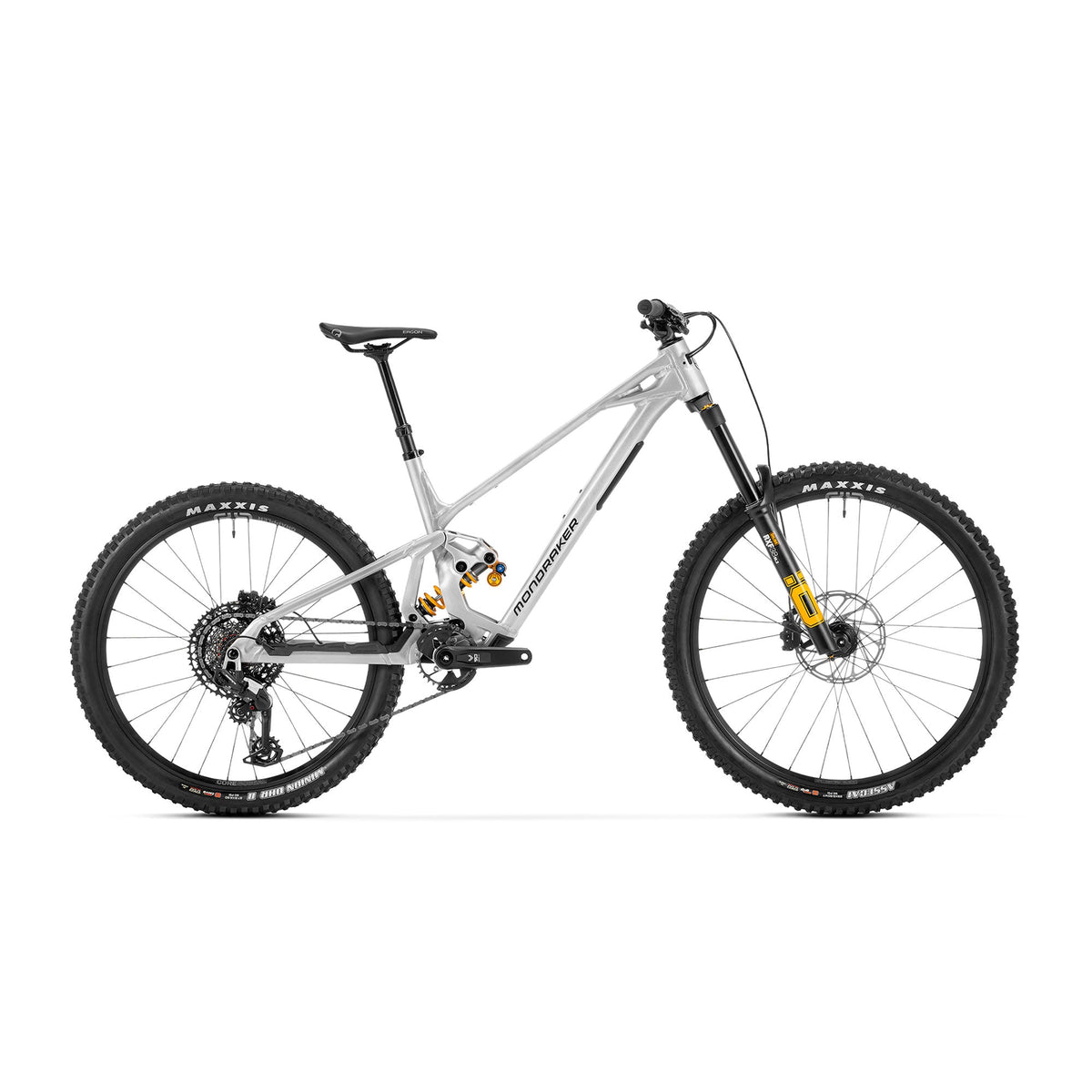

Mondraker Anark XR Bike

$5,99900

Prices subject to change. How pricing works →

Color
Size

Coming soon! Reserve your Mondraker Anark XR Bike today and a sales associate will contact you within 24 hours with the shipping date.

Mondraker   |   SKU: 010.27US034  |   Option: Raw Alloy, S

Pickup available at RA Cycles - Brooklyn

Usually ready in 24 hours

Questions about this product?

What size do I need?

Get a digital fit assessment

Schedule a Bike Fit in Walnut Creek, CA.

Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242
* Product image may vary. Refer to the description for accurate details.

Mondraker Anark XR Bike - Specifications

Frame Material:
Anark 6061 Alloy Stealth Evo / Updated Zero Suspension System / 170mm travel / 12x148mm / UDH
Fork:
Öhlins RXF 38 M.3 29 / 180mm Travel / Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber / TTX18 Twin Tube cartridge / 15x110mm / Offset 44mm.
Rear Suspension:
Öhlins TTX 22M.2 Coil 205X65mm / Settings: high speed compression lever with climb mode, low-speed compression, rebound / Trunnion top mount / 30x8mm bottom bushings
Headset:
Onoff custom ZS56/ZS56, 1-1/8" / 1.5" head tube / Internal cable routing / Sealing plugs without blocklock
Seatpost:
Onoff Pija dropper internal / 31.6mm / 1X Remote lever with bearing / S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Rear Derailleur:
SRAM Eagle 90 T-Type
Crankset:
SRAM 90 T-Type
Chainrings:
32t
Bottom Bracket:
SRAM DUB BSA 73mm
Brake Calipers:
SRAM Maven Base 4-piston Hydraulic Disc
Brake Levers:
SRAM Maven Base
Rotors:
SRAM Centerline 6-Bolt 200mm
Shifters:
SRAM 70 Trigger
Cassette:
SRAM XS-1270 12-speed 10-52
Chain:
SRAM 70 T-Type 12-speed
Wheel - Front:
e*thirteen Grappler Core / Hookless / 6066 Welded Aluminum / 30mm Internal Width / Tubeless ready
Wheel - Rear:
e*thirteen Grappler Core / Hookless / 6066 Welded Aluminum / 30mm Internal Width / Tubeless ready
Stem:
Onoff S6 30mm 0-degree / Full CNC / 31.8mm
Handlebar:
Onoff S6 1.0 7050 Alloy / S, M, ML: 25mm rise, L, XL size: 38mm rise / Width: 800mm / 8-degree backsweep / 5-degree upsweep / 31.8mm
Saddle:
Ergon Enduro SPS20
Tires:
Front: Maxxis Minion Assegai 29x2.5 WT / Tubeless ready / 3C Maxx Grip / DH Casing | Rear: Maxxis Minion DHR II 27.5x2.5 WT / Tubeless ready / 3C Maxx Terra / DH Protection
Grips:
Onoff Desert Pro / CNC lock-on / 135mm / L and XL: Thicker size
Pedals:
Not Included
Travel:
180mm/170mm

*Specifications are subject to change.

Mondraker Anark XR Bike Geometry

Mondraker Anark XR Bike Mountain Bike Geometry
Size:
S
M
ML
L
XL
B. Seat Tube (c-t)
380
410
435
460
490
C. Top Tube Length
583
603
625
647
669
D. Head Tube Length
110
110
120
130
140
E. Chain Stay Length
445
445
445
445
445
F. BB Drop
10
10
10
10
10
G. Seat Tube Angle
74
74
74
74
74
H. Head Tube Angle
63.5
63.5
63.5
63.5
63.5
J. Wheel Size
29"/27.5"
29"/27.5"
29"/27.5"
29"/27.5"
29"/27.5"
K. Stack
644
644
653
662
671
L. Reach
440
460
480
500
520
Stem Length
30mm
30mm
30mm
30mm
30mm
Bar Width
800mm
800mm
800mm
800mm
800mm
M. Crank Length
165mm
165mm
165mm
170mm
170mm
