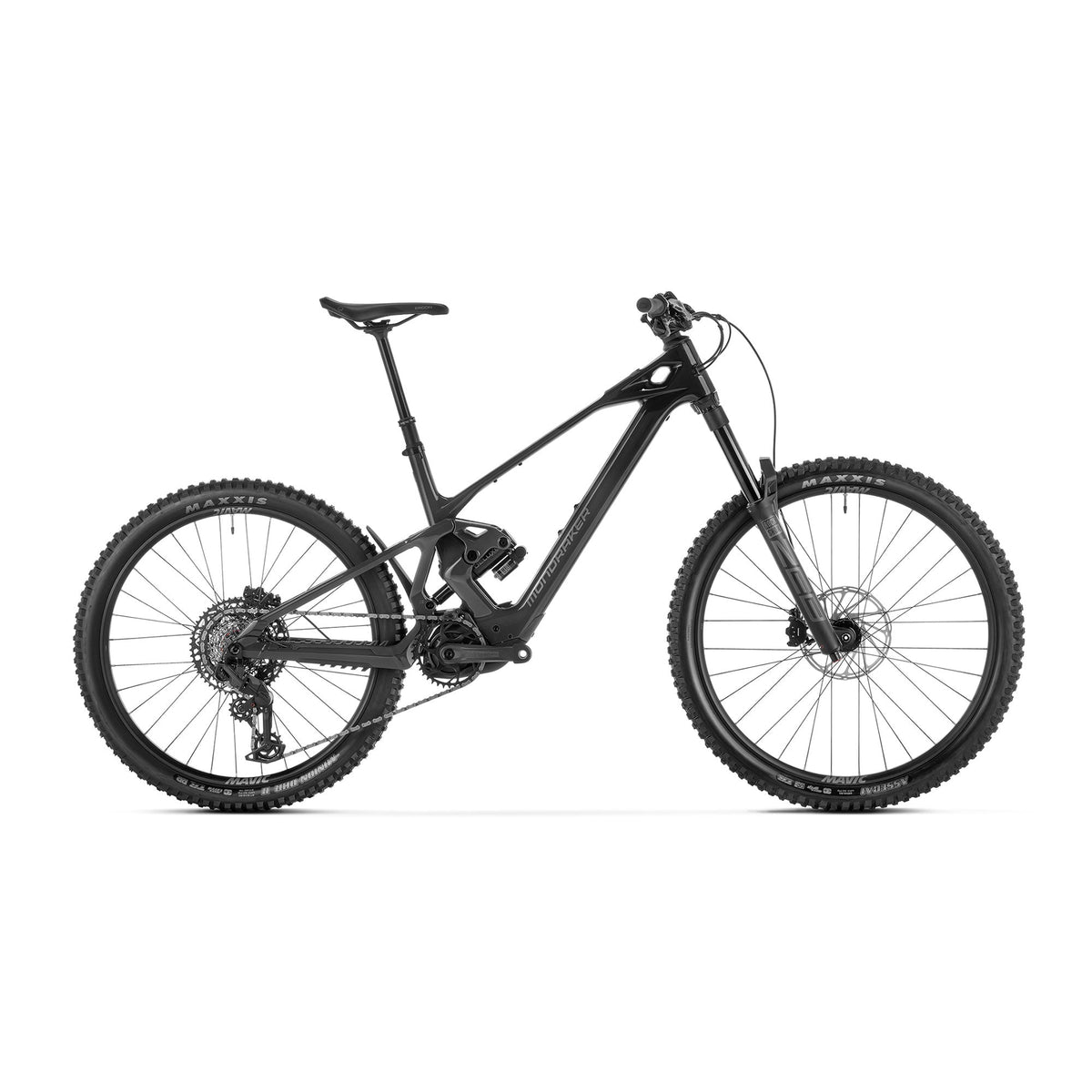

Mondraker Zendit S Bike

$8,99900

Prices subject to change. How pricing works →

Color
Size

Coming soon! Reserve your Mondraker Zendit S Bike today and a sales associate will contact you within 24 hours with the shipping date.

Mondraker   |   SKU: 010.27US171  |   Option: Obsidian Grey, S

Pickup available at RA Cycles - Brooklyn

Usually ready in 24 hours

Questions about this product?

What size do I need?

Get a digital fit assessment

Schedule a Bike Fit in Walnut Creek, CA.

Schedule a Bike Fit in Brooklyn, NY. Please call 718-636-5242
* Product image may vary. Refer to the description for accurate details.

Mondraker Zendit S Bike - Specifications

Frame Material:
Zendit Stealth Air Carbon front triangle / Stealth Alloy rear triangle / Updated Zero Suspension System / 165mm travel / Boost 12x148mm rear axle / UDH
Fork:
RockShox ZEB Base 29 / Delta RC / 170mm travel / Boost 15x110mm axle / 44mm offset / Settings: low-speed compression, Extl rebound, air preload
Rear Suspension:
RockShox Super Deluxe Select / 205x65mm / Trunnion top mount / 30x8mm bottom bushings
Headset:
Acros custom ZS56/ZS56, 1-1/8" / 1.5" head tube / Internal cable routing / Sealing plugs without blocklock
Seatpost:
X-Fusion Manic TA dropper / 31.6mm / 1X Remote lever / S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 532x200mm, XL size: 532x200mm
Rear Derailleur:
SRAM 70 Eagle AXS T-Type
Crankset:
e*thirteen Helix Core E*Spec Plus
Chainrings:
SRAM Eagle 36T T-Type / 104BCD / Steel / CL55
Brake Calipers:
SRAM Maven Base / 4-piston caliper
Brake Levers:
SRAM Maven Base
Rotors:
SRAM Centerline 6-Bolt 200mm
Shifters:
SRAM Trigger 70 T-Type Actuation
Cassette:
SRAM XS-1270 12-speed 10-52
Chain:
SRAM 70 T-Type 12-speed
Battery:
Avinox 800Wh
Motor:
Avinox M2S
Display:
Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)
Wheel - Front:
Mavic E-Access XR30 / 30mm internal width / Tubeless ready
Wheel - Rear:
Mavic E-Access XR30 / 30mm internal width / Tubeless ready
Stem:
Onoff S6 / 6061 forged alloy + CNC / 31.8mm
Handlebar:
Onoff S6 1.0 7050 Alloy / S, M, ML: 25mm rise, L, XL size: 38mm rise / Width: 800mm / 8-degree backsweep / 5-degree upsweep / 31.8mm
Saddle:
Ergon SM10 E-Mountain
Tires:
Maxxis Assegai 29x2.5 WT / Tubeless ready / 3C Maxx Grip compound / EXO+ protection (Front) / Maxxis Minion DHR II 27.5x2.5 WT / Tubeless ready / 3C Maxx Grip compound / DD protection (Rear)
Grips:
Onoff Desert Pro / CNC lock-on / 135mm / L and XL: Thicker size
Pedals:
Not Included
Travel:
170mm/165mm
Stem Angle:
0 degree

*Specifications are subject to change.

Mondraker Zendit S Bike Geometry

Mondraker Zendit S Bike Mountain Bike Geometry
Size:
S
M
ML
L
XL
B. Seat Tube (c-t)
380
410
435
460
490
C. Top Tube Length
586
606
628
650
672
D. Head Tube Length
110
110
120
130
140
E. Chain Stay Length
450/451
450/451
450/451
455/456
455/456
F. BB Drop
6mm/11mm
6mm/11mm
6mm/11mm
6mm/11mm
6mm/11mm
G. Seat Tube Angle
73.15/73.5
73.15/73.5
73.15/73.5
73.15/73.5
73.15/73.5
H. Head Tube Angle
63.15/63.5
63.15/63.5
63.15/63.5
63.15/63.5
63.15/63.5
J. Wheel Size
29" (F) /27.5" (R)
29" (F) /27.5" (R)
29" (F) /27.5" (R)
29" (F) /27.5" (R)
29" (F) /27.5" (R)
K. Stack
631/633
631/634
640/643
649/652
658/661
L. Reach
436/440
456/460
476/480
496/500
516/520
Stem Length
30mm
30mm
30mm
30mm
30mm
Bar Width
800mm
800mm
800mm
800mm
800mm
M. Crank Length
155mm
155mm
155mm
155mm
155mm
