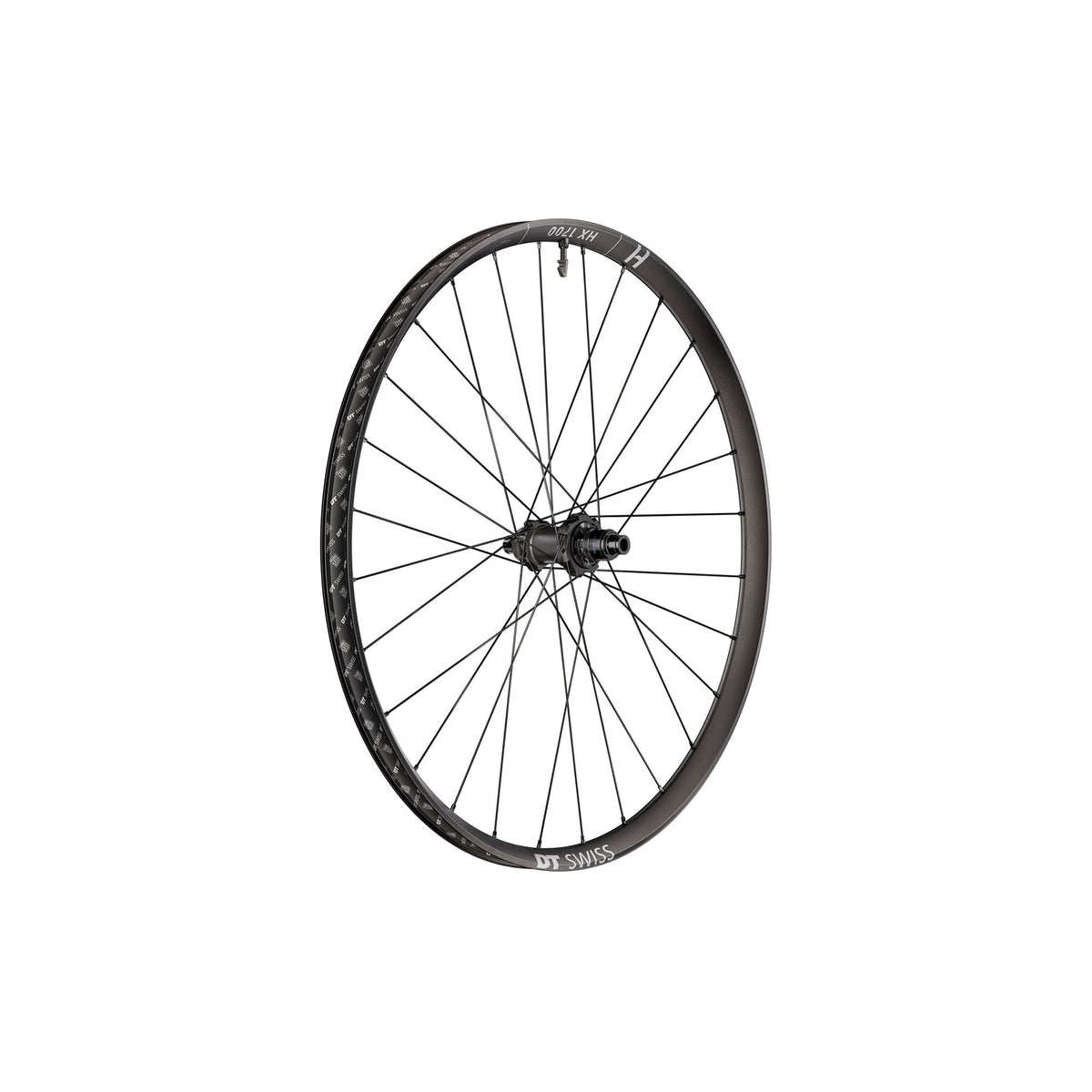

DT Swiss HX 1700 Spline 27.5" 6-Bolt Disc Brake Rear Wheel
Precio de oferta
$689.90
Precio regular
$689.90
Los precios están sujetos a cambios. Cómo funcionan nuestros precios →
-
- Garantía de igualar precios de RA
-
Paga después con
En stock Envío inmediato
En stock Se envía en 1 a 2 semanas según su ubicación
Agotado definitivamente — ¡Escríbenos por chat y te contamos las opciones actuales!
SKU: DTHX17002756BRRXDBLK Opción: Black / XD Driver
Disponible para recoger en RA Cycles Brooklyn
Stock Availability by Location
RA Cycles Brooklyn DisponiblePocas unidades (queda 1)Pocas unidades (quedan 2)— Agotado— No disponible de inmediato
105 5th Ave, Brooklyn, NY 11217718-636-5242
* Available for in-store pickup in 2-4 hours
* Available for in-store pickup in 2-4 hours
* Available for in-store pickup in 2-4 hours
RA Cycles Walnut Creek DisponiblePocas unidades (queda 1)Pocas unidades (quedan 2)— Agotado— No disponible de inmediato
2099 Mt Diablo Blvd, Walnut Creek, CA 94596925-433-7099
* Available for in-store pickup in 2-4 hours
* Available for in-store pickup in 2-4 hours
* Available for in-store pickup in 2-4 hours
Distribution Center - East DisponiblePocas unidades (queda 1)Pocas unidades (quedan 2)— Agotado— No disponible de inmediato
Distribution Center - Central DisponiblePocas unidades (queda 1)Pocas unidades (quedan 2)— Agotado— No disponible de inmediato
Questions about this product?

DT Swiss HX 1700 Spline 27.5" 6-Bolt Disc Brake Rear Wheel
$689.90
DT Swiss HX 1700 Spline 27.5" 6-Bolt Disc Brake Rear Wheel Info
The DT Swiss HX 1700 Spline 27.5" 6-Bolt Disc Brake Rear Wheel is an aluminum mountain bike wheel built for the loads that e-MTBs and hard-ridden trail bikes put through a rear hub. It pairs a wide 650B rim with DT Swiss's 350 hub, and it comes in the 6-bolt rotor mount format with an XD driver body for the cassette.
A wide, tubeless-ready rim
The HX 1700 Spline uses an aluminum rim with a 30mm inner width and a 35mm outer width. That is a modern trail-width profile, and it gives a tire's casing a broad, supported footprint rather than pinching it between narrow walls. Wider rims generally let you run a tire at lower pressure with a more predictable sidewall, which matters when you are braking late into a rock garden or loading the rear tire hard through a berm. The rim is compatible with both clincher and tubeless setups, so you can run sealant and drop pressure for traction, or fit tubes if that suits your riding better.
The HX family is DT Swiss's line aimed at e-MTB and heavy-duty trail use, and the "Spline" name refers to the HX 1700 platform's rim and hub package rather than a separate wheel type.
350 hub, 12x148mm Boost
At the center is the DT Swiss 350 hub, one of the most widely specified mountain bike hubs in the aftermarket and OEM world. DT Swiss has described its redesigned 350 hub for this wheel family as having an enlarged hub body, intended to handle the higher braking and drive torque that comes with motor assistance. On a rear wheel that is doing the work of putting power down and slowing a heavier bike, that is the part you want to be overbuilt rather than marginal.
This rear wheel uses a 12x148mm Boost thru-axle, the current standard on most modern trail, enduro and e-MTB frames. Check that your frame is Boost-spaced before ordering, since this wheel will not fit a 142mm rear end without adapters and re-dishing. The rotor mounts with six bolts, so it takes a 6-bolt disc rather than a Centerlock one. This listing is the Black version with an XD driver, which is the freehub body used by SRAM XD and XX1-style 12-speed cassettes.
Built for heavier loads
The wheel is built with 28 DT Swiss Hybrid 1 straight-pull double-butted spokes, a pattern that is designed to be stiff and to resist the lateral loads of cornering at speed. DT Swiss rates the HX 1700 Spline for a combined rider and bike weight up to 150 kg, a figure that makes it relevant for heavier riders and for e-bikes, where the bike alone weighs well beyond a conventional trail bike.
The finish is black, so it works with most frame colors and will not look out of place on a darkened-out build.
Who it is for
This is a rear wheel for riders on 27.5" e-MTBs and trail bikes who want a wide rim and a proven hub without stepping up to carbon. It makes sense as a replacement for a damaged or worn-out stock rear wheel, or as an upgrade if your current rim is narrow and you want better tire support. If you are building or rebuilding a 27.5" bike with Boost spacing, a 6-bolt rotor and an XD driver cassette, it covers the specification in one wheel.
The HX 1700 Spline is also sold in other axle and rotor configurations, so confirm the 12x148mm Boost spacing, 6-bolt rotor mount and XD driver all match your frame, brakes and drivetrain before you order. If you are unsure, the RA Cycles team can help you check compatibility.
Especificaciones de DT Swiss HX 1700 Spline 27.5" 6-Bolt Disc Brake Rear Wheel
- Material:
- Aluminum
- Tipo de eje:
- 12x148mm Thru Axle
- Tipo de neumático:
- Clincher or Tubeless
- Maza:
- DT Swiss 350
- Perfil del aro:
- 22mm
- Ancho interno del aro:
- 30mm
- Ancho externo del aro:
- 35mm
*Las especificaciones están sujetas a cambios.
La perspectiva de RA
A rear wheel is the part of an e-MTB that takes the most abuse, and the HX 1700 Spline is built with that in mind. The 350 hub is a known quantity. It is serviceable, it is easy to find parts for, and shops are comfortable working on it.
The 30mm inner width is a good fit for most modern trail tires. It supports the casing well and lets you run lower pressures without the tire squirming in corners. If your current rim is closer to 25mm, you will likely notice the difference in how the tire holds its shape.
There are tradeoffs. This is a 27.5" wheel, so it only makes sense if your frame is built around that size. The 12x148mm Boost spacing, 6-bolt rotor mount and XD driver all have to match your bike, and any one of them being off means this is the wrong wheel. Check all three before ordering.
It is also an aluminum wheel. It will not be as light as a carbon option, and it is not meant to be. The case for it is durability and cost.
We would reach for it when replacing a rear wheel on an e-MTB or a hard-ridden trail bike, particularly for heavier riders or anyone who has bent a narrower rim.
